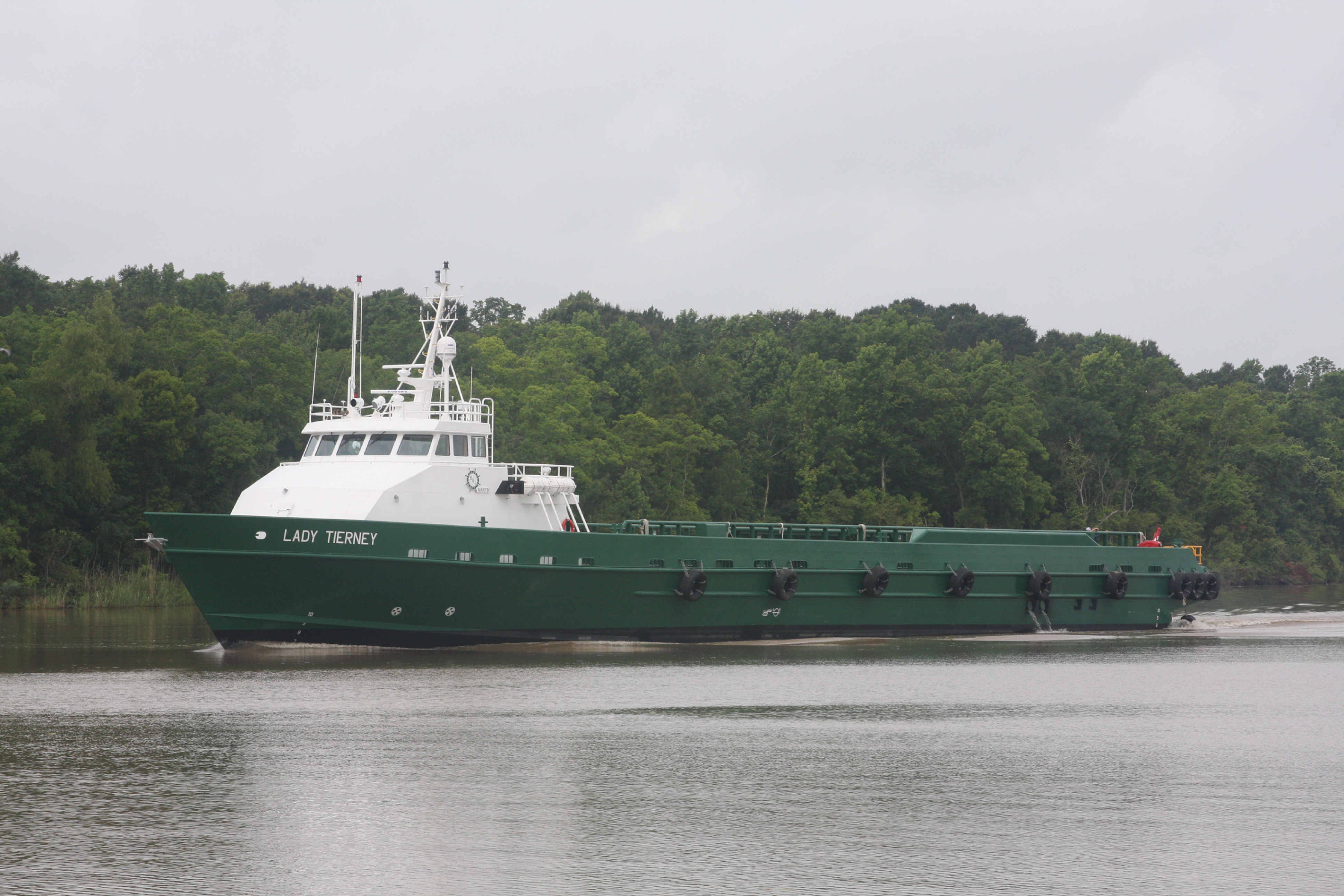

M/V Lady Tierney
Home
»
Lady Tierney
Principal Dimensions
Length - 205'
Beam - 34'
Depth - 15'
Draft - 8'
Tank Capacities
Rig Fuel - 59,000 gallons
Vessel Fuel - 14,500 gallons
Lube Oil - 500 gallons
Waste Oil - 500 gallons
Sewage - 1,000 gallons
Rig Water - 41,500 gallons
Fresh Water - 2,000 gallons
Pumps
Fire/Bilge Pump.……. Barnes 2020 HCU w/10hp motor
Bilge Pump…………. Barnes 10CCE w/5hp motor
Rig Water Pump……… Barnes 4030 HCU w/30hp motor
Fuel Transfer Pump… Barnes 4030 HCU w/30hp motor
Lube Pump……………. Viking HL 4195 AK w/3/4hp motor
Waste Oil Pump.……... Viking HL 4195 AK w/3/4hp motor
Fire Monitor Pump…… Crane Deming 12x10
Sewage Pump…………. Crown 2COOD w/2hp motor
Fresh Water Pump..…..… Jacuzzi w/1hp motor
Electronics
Dynamic Positioning…… DPII
VHF Radio……………… Two (2) Icom M604/M50401
Single Sideband………………. One (1) Furuno FS 1503
GPS……………………… One (1) Furuno GP 1920
Depth Sounder..………… One (1) Furuno DFF1
Radar…………………… Two (2) Furuno FR 8122
Navtech Reciever……… One (1) Furuno NX700P
Loudhailer……………… One (1) Furuno LH3000
Machinery
Main Engines………… Four (4) CAT 3512C 1911hp @ 1600rpm
Aux Engines…………… Two John Deer 6068AFM 75
Generators……………… Two Marathon 150KW
Fire Monitor/Hydraulic Eng… FFS
Bow Thruster…………… Two Thrustmaster 200hp ea
Steering System
Dual Hydraulic Steering…… Beier Radio
Fire Detection & Fighting Systems
CO2 System…………… Quincy
Fire Detection System… Gemini
Accomodations
Berths……………… 10 bunks
Seating……………… 50 seats
Range…………….… Toastmaster
Heads……………… Two w/shower
Central Air/Heat……… 3-5 ton units
Alarm Monitoring System
75 Point Alarm System… Beier Radio
